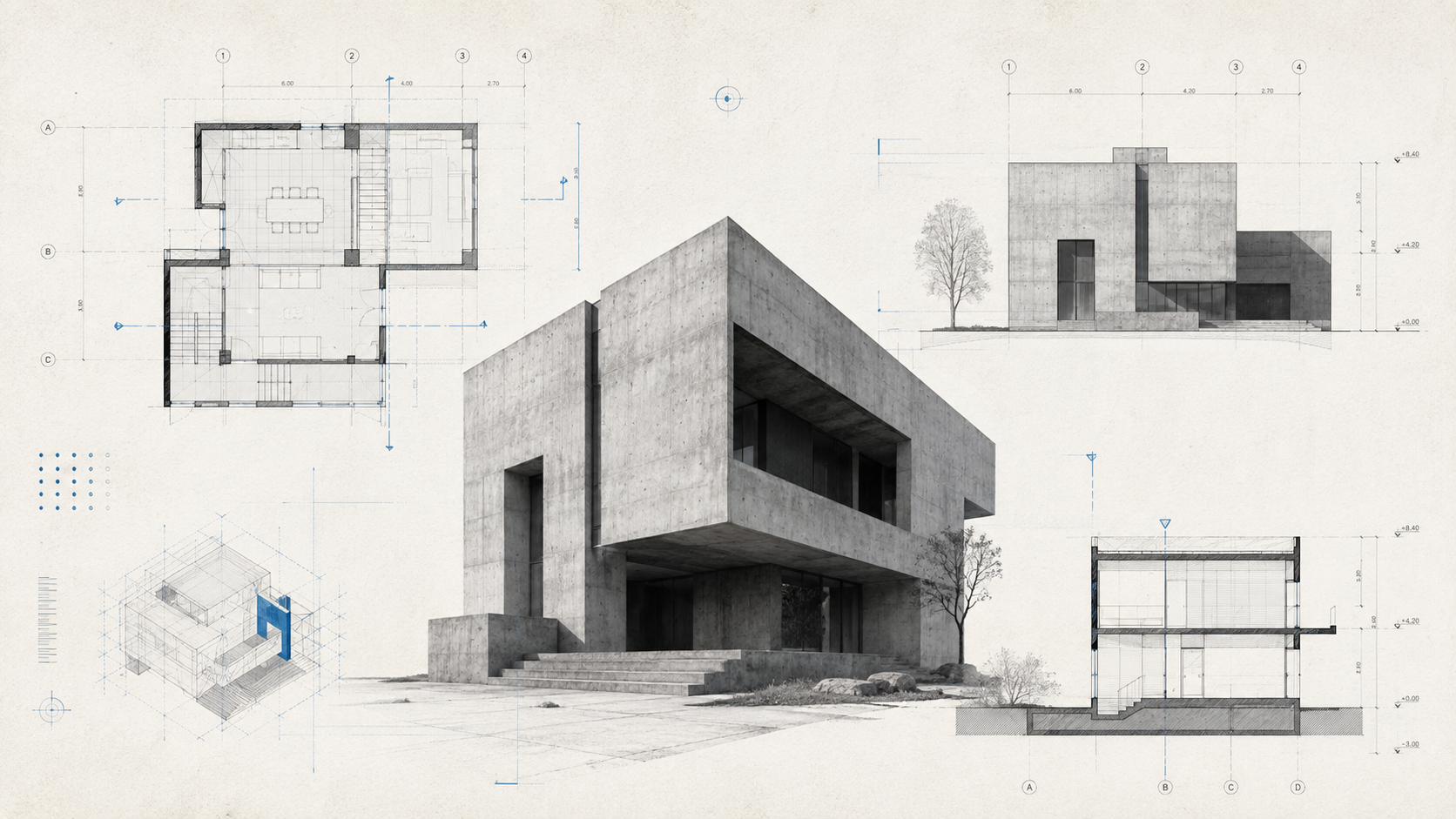

What Is an Architectural Blueprint? Plans, Sections & Elevations Explained

An architectural blueprint is a technical drawing that communicates how a building is designed, organized, and constructed. It uses scaled views, dimensions, symbols, and annotations to explain everything from room layouts to exterior facades and structural relationships.

Architects use different types of drawings to represent different aspects of a building. Floor plans show spaces from above, elevations reveal exterior appearances, and sections cut through the structure to explain what happens inside.

Together, these drawings turn architectural ideas into information that designers, engineers, builders, and clients can understand.

But what exactly is an architectural blueprint, how do you read one, and what is the difference between a plan, section, and elevation?

This guide explains the essentials of architectural drawings, their history, common symbols, and their lasting influence on contemporary design.

What Is an Architectural Blueprint?

An architectural blueprint is a scaled technical representation of a building or architectural project.

It communicates design information through lines, measurements, symbols, labels, and graphical conventions.

Architectural blueprints may show:

• Building layouts and room arrangements

• Wall locations and thicknesses

• Doors and windows

• Building elevations and facade details

• Floor and ceiling levels

• Stairs and circulation spaces

• Construction materials and finishes

• Structural relationships

• Technical notes and dimensions

A complete architectural drawing set may contain numerous sheets, each explaining a different part of the project.

Although the word "blueprint" originally referred to a specific printing process, it is still widely used to describe architectural plans and construction drawings.

Modern architects typically create their drawings digitally using computer-aided design (CAD) and building information modeling (BIM) software.

The purpose remains the same: to communicate design clearly and precisely.

Why Are Architectural Drawings Called Blueprints?

The term "blueprint" comes from a historic photographic reproduction process developed during the nineteenth century.

The original cyanotype process used light-sensitive chemicals to reproduce drawings.

Traditional blueprints were recognizable by their white lines against a deep blue background.

This method made it possible to reproduce technical drawings without redrawing each copy by hand.

Blueprints became closely associated with architecture, engineering, construction, and industrial design.

Over time, other reproduction techniques replaced the traditional blue-and-white process.

Today, architectural drawings are commonly produced using digital software and printed on white paper with black or colored lines.

Nevertheless, the word "blueprint" survives as a familiar term for the technical documentation used to design and construct buildings.

Its distinctive visual language also continues to influence typography, illustration, graphic design, and architectural fashion.

What Are the Three Main Types of Architectural Drawings?

Three of the most important architectural drawing types are floor plans, elevations, and sections.

Each represents the building from a different perspective.

Understanding these three drawing types is a useful starting point for reading architectural blueprints.

1. Architectural Floor Plans Explained

A floor plan is a drawing that represents a horizontal section through a building, viewed from above.

Instead of showing the roof, a conventional floor plan imagines the building cut at a level that reveals walls, doors, windows, and the arrangement of interior spaces.

This makes it possible to understand how rooms relate to one another.

What Does a Floor Plan Show?

A typical floor plan may include:

• Exterior and interior walls

• Room names and dimensions

• Door openings and swing directions

• Windows

• Staircases

• Corridors and circulation areas

• Fixed fixtures and equipment

• Furniture layouts

• Structural columns

• Dimension lines and annotations

Floor plans are particularly useful because they explain how people move through a building.

For example, a residential floor plan can show the relationship between bedrooms, living areas, kitchens, and bathrooms.

A museum floor plan may reveal galleries, public circulation routes, entrances, and service spaces.

A large residential development can use plans to communicate different apartment types and shared facilities.

How Do You Read a Floor Plan?

Start by identifying the building's main entrance and exterior walls.

Next, find the room labels and observe how spaces connect.

Look for door symbols, window openings, and stair directions.

Finally, use the dimension lines and drawing scale to understand the actual sizes of spaces.

Remember that a floor plan is a technical drawing, not an aerial photograph.

Certain elements are shown using standardized symbols and conventions rather than their literal appearance.

2. Architectural Elevations Explained

An architectural elevation is a straight-on view of a building's exterior or an interior wall.

Unlike floor plans, elevations focus on vertical appearance.

They show how different elements relate across the height and width of a surface.

What Does an Architectural Elevation Show?

An exterior elevation may include:

• Doors and windows

• Exterior cladding and materials

• Rooflines

• Balcony positions

• Facade proportions

• Building heights

• Ground levels

• Structural patterns

• Repeated architectural elements

Elevations are especially important for understanding a building's visual identity.

They reveal the rhythm of windows, the arrangement of structural features, and the relationship between solid surfaces and openings.

Why Are Elevations Important in Brutalist Architecture?

Brutalist architecture frequently emphasizes repeated structural elements, exposed concrete, and monumental geometry.

These qualities become especially clear in elevation drawings.

Consider London's Trellick Tower.

Its architectural identity is partly defined by repeated balcony patterns, strong horizontal lines, and a separate vertical service tower.

An elevation can communicate these relationships through relatively simple architectural linework.

That is one reason iconic Brutalist buildings translate so naturally into blueprint-inspired graphic designs.

Explore our article about Trellick Tower and Brutalist Architecture.

3. Architectural Sections Explained

An architectural section is a drawing created by imagining a vertical cut through a building.

It reveals spaces and construction relationships that cannot be understood from the exterior alone.

A section can show the connection between different floors, interior volumes, structural elements, and roof systems.

What Does an Architectural Section Show?

Common information includes:

• Floor-to-floor heights

• Ceiling levels

• Foundations

• Staircases

• Roof construction

• Wall assemblies

• Structural connections

• Changes in ground level

• Double-height spaces

• Relationships between interior and exterior areas

Sections are essential because architecture exists in three dimensions.

A floor plan describes the horizontal organization of a building.

An elevation shows its vertical appearance.

A section helps explain the building's internal spatial and structural relationships.

Why Are Sections Useful?

Imagine a building with an elevated pedestrian walkway.

A floor plan may show where the walkway is located.

An elevation may show its exterior appearance.

A section can reveal how the walkway connects to different floor levels and what lies beneath it.

In complex buildings, these relationships are difficult to communicate through a single drawing.

Sections therefore help architects explain how different parts of a structure fit together.

Floor Plan vs. Elevation vs. Section: What's the Difference?

The easiest way to remember the three drawings is to imagine looking at a building from different directions.

A floor plan explains the arrangement of spaces when viewed from above.

An elevation shows the building's face as viewed from outside.

A section cuts through the building to reveal its internal arrangement.

All three are necessary because no single two-dimensional view can fully communicate a three-dimensional structure.

Architectural drawing sets frequently use additional details, schedules, diagrams, and specifications to explain the building beyond these basic views.

What Do Architectural Blueprint Symbols Mean?

Architectural blueprints use symbols to communicate technical information efficiently.

A small symbol can represent a door, window, staircase, section cut, or material.

The exact appearance of symbols can vary according to the project, drawing standards, and architectural office.

Common blueprint symbols include:

Why Is the Drawing Legend Important?

Many drawing sets include a legend explaining abbreviations, symbols, and graphic conventions.

Before interpreting an unfamiliar blueprint, check the legend and title block.

Do not assume every project uses identical symbols.

Professional drawing standards also differ between countries and organizations.

The title block typically identifies the project, drawing title, scale, sheet number, revision, and other important information.

How Do You Read Architectural Blueprints?

Learning to read blueprints begins with understanding how information is organized.

Here is a practical process for beginners.

Step 1: Read the Title Block

Locate the drawing title, project name, sheet number, and revision.

This information helps you identify what the sheet represents and whether you are viewing the intended version.

Step 2: Check the Drawing Scale

Architectural drawings represent buildings at reduced sizes.

Common scales include 1:50, 1:100, and 1:200, although conventions vary by location and project.

For example, at a scale of 1:100, one unit on the drawing represents 100 of the same units in reality.

Never assume the scale remains accurate on a resized digital image or printout.

Use written dimensions as the primary reference when available.

Step 3: Identify the Drawing Type

Determine whether you are viewing a floor plan, elevation, section, detail, or another drawing.

This tells you which information the drawing is intended to communicate.

Step 4: Understand Line Weights

Architectural drawings use different line thicknesses to create visual hierarchy.

Thicker lines may indicate elements cut through in a section or plan.

Thinner lines may represent surface details, secondary elements, or information beyond the cut plane.

Exact conventions depend on the drawing system.

Step 5: Read Dimensions and Levels

Dimensions explain distances, widths, heights, and relationships between elements.

Level annotations establish vertical reference points.

These are essential when interpreting how a building is organized.

Step 6: Follow Drawing References

Architectural plans often refer to other sheets.

A section symbol may direct you to a specific section drawing.

An enlarged detail may explain a particular wall connection or construction condition.

Following these references helps you understand the building as a complete system.

What Is the Difference Between a Blueprint and an Architectural Drawing?

The terms are often used interchangeably, but there is a technical distinction.

An architectural drawing is any drawing that communicates architectural information.

It may be a preliminary sketch, conceptual diagram, floor plan, elevation, section, or detailed construction document.

A blueprint originally referred to a drawing reproduced using a specific photographic printing method.

Today, people often use "blueprint" as a general word for architectural or construction plans.

In professional practice, more specific terms such as architectural drawings, construction documents, plans, and drawing sets may be used depending on the purpose.

Are Blueprints Still Used Today?

Yes, although most architectural documentation is now prepared digitally rather than reproduced through the traditional cyanotype process.

Contemporary architectural offices use software to develop, coordinate, and communicate their designs.

Common tools include CAD and BIM applications.

These systems can produce floor plans, elevations, sections, schedules, and other forms of technical documentation.

Some also coordinate information through three-dimensional building models.

Printed drawings remain useful on construction sites and during project reviews, while digital files allow easier sharing and revision.

The tools have evolved, but the fundamental need to communicate architectural information remains.

Why Are Architectural Blueprints Important?

Architectural drawings connect design ideas with the practical process of creating buildings.

They help different participants understand the same project.

For architects, they communicate spatial organization and design intent.

For engineers, they provide information necessary for coordinating structural and building systems.

For contractors, coordinated construction documents explain what needs to be built.

For clients, drawings help translate an imagined building into an understandable proposal.

For architecture students, learning to interpret plans, sections, and elevations is a foundational skill.

A good drawing makes complicated spatial relationships easier to understand.

Architectural Blueprints and Brutalist Design

Brutalist architecture has a particularly strong connection with technical graphic language.

Its buildings often use exposed concrete, structural repetition, monumental forms, and clearly expressed construction systems.

These characteristics work well when translated into architectural drawings.

A building's elevation can become a repeating graphic composition.

A structural grid can form a visual pattern.

A section can reveal dramatic internal spaces.

A tower's silhouette can become a recognizable architectural symbol.

Consider the Barbican Estate in London.

Its residential towers, repeated balconies, elevated walkways, and layered urban spaces offer numerous possibilities for plans, sections, elevations, and technical illustrations.

The Barbican Estate's Brutalist architecture demonstrates how these structural principles influence architectural graphic design.

From Architectural Blueprints to Graphic T-Shirts

Blueprints have become a recognizable source of inspiration for contemporary graphic clothing.

Their visual appeal comes from precision, linework, geometry, and the feeling of studying how something was designed.

Architectural blueprint graphics can include:

• Technical elevation drawings

• Building silhouettes

• Structural grids

• Measurement-style annotations

• Geometric compositions

• Architectural reference labels

• Concrete textures

• Minimalist typography

The strongest blueprint-inspired designs do not need to reproduce complete construction documents.

Instead, they select architectural details and reinterpret them as balanced visual compositions.

This approach transforms technical drawing into wearable graphic design.

At GUBÉ WEAR, architectural linework and structural geometry are central to the brand's approach to contemporary streetwear.

Architectural Blueprint T-Shirts at GUBÉ WEAR

For architecture lovers, students, and designers, blueprint-inspired apparel can be a way to express their interest in the built environment.

GUBÉ WEAR explores this aesthetic through architectural graphics, heavyweight fabrics, and designs inspired by concrete structures.

GUBÉ Brutalist Blueprint Tee

The GUBÉ Brutalist Blueprint Tee features a graphic combining monumental concrete-inspired geometry, technical drawing details, and a red-orange sun.

Its design brings the visual language of architectural illustration into an everyday garment.

Product details include:

• 100% ring-spun US cotton

• Heavyweight 6.1 oz fabric

• Garment-dyed finish

• Relaxed unisex fit

• Blueprint-inspired architectural artwork

• Concrete gray geometry and red-orange graphic accent

• Pre-shrunk fabric

• Double-needle stitching

The design may appeal to architects, architecture students, graphic designers, and people interested in Brutalism.

Shop the GUBÉ Brutalist Blueprint T-Shirt

Brutalist Architecture Oversized Tee

For a more oversized silhouette, the GUBÉ Brutalist Architecture Oversized Tee offers a different approach to architectural graphic apparel.

Its graphic draws inspiration from concrete structures, technical elevations, and structural minimalism.

The substantial 7.0 oz / 240 GSM cotton and dropped shoulders create a wider, more structured fit.

This style works well with relaxed trousers, denim, and contemporary streetwear outfits.

Explore the Brutalist Architecture Oversized Tee

Are Blueprint T-Shirts Good Gifts for Architects?

A blueprint-inspired T-shirt can make a thoughtful gift for someone who enjoys architecture, technical drawing, or design.

It can appeal to:

• Architecture students

• Professional architects

• Interior designers

• Urban planners

• Structural design enthusiasts

• Graphic designers

• Modernist architecture lovers

• Brutalist architecture collectors

The appeal comes from the relationship between the graphic and the person's interests.

An architecture student may appreciate technical linework and elevations.

A Brutalism enthusiast may prefer recognizable concrete geometry.

A graphic designer might be drawn to structural grids and carefully arranged typography.

When choosing a gift, consider fabric weight, fit, available colors, and the style of the recipient.

For additional ideas, explore our Gifts for Architecture Lovers Guide.

How to Style an Architectural Blueprint T-Shirt

Blueprint-inspired graphic tees work particularly well with simple outfits.

Pair a heavyweight architecture tee with straight-leg denim and neutral sneakers for an everyday look.

For a more contemporary silhouette, combine an oversized architectural T-shirt with wide-leg trousers or relaxed cargo pants.

Colors such as ivory, stone, black, olive, and charcoal can complement technical linework.

A structured jacket or overshirt can provide another layer without overwhelming the graphic.

The goal is to let the architectural artwork remain the visual focus.

Discover more building-inspired apparel in the GUBÉ WEAR Architecture Collection.

Frequently Asked Questions About Architectural Blueprints

What is an architectural blueprint?

An architectural blueprint is a scaled technical drawing used to communicate the design, layout, dimensions, and construction details of a building.

What are the main types of architectural blueprints?

Important types include floor plans, elevations, sections, site plans, roof plans, details, and other construction documents.

What is the difference between a plan and an elevation?

A floor plan shows a horizontal cut through a building viewed from above. An elevation shows a straight-on view of a building's exterior or interior wall.

What is the difference between an elevation and a section?

An elevation shows the appearance of a building face. A section cuts vertically through the building to reveal internal spaces, heights, and construction relationships.

Why are blueprints blue?

Traditional blueprints were made using a photographic reproduction process that produced white lines on a blue background. Most modern architectural drawings no longer use this process.

How do architects create blueprints today?

Architects commonly use CAD and BIM software to produce digital plans, elevations, sections, details, and coordinated drawing sets.

What does scale mean on a blueprint?

Scale expresses the relationship between the size of an object on the drawing and its real-world dimensions. For example, 1:100 means the drawing is one-hundredth of the represented size.

Can beginners learn to read architectural drawings?

Yes. A useful starting point is learning the differences between plans, elevations, and sections, then studying scales, dimensions, symbols, and drawing references.

Are architectural drawings and blueprints the same thing?

The words are often used interchangeably, but architectural drawing is the broader term. Blueprint originally described a particular printing process.

Where can I buy an architectural blueprint T-shirt?

GUBÉ WEAR offers the Brutalist Blueprint Graphic T-Shirt, featuring architecture-inspired technical linework and structural geometry.

Final Thoughts: Understanding Architecture Through Drawings

Architectural blueprints reveal the thinking behind the buildings around us.

Floor plans describe how spaces are organized.

Elevations communicate exterior composition.

Sections reveal internal relationships and construction.

Together, these drawings provide a visual language for understanding architecture before it becomes a physical structure.

That same language continues to influence contemporary design.

Technical linework, structural grids, elevations, and monumental geometric forms have moved beyond architectural offices into photography, illustration, typography, and streetwear.

At GUBÉ WEAR, architecture is both a subject and a design system.

Explore our Brutalist Blueprint Tee or browse the complete Architecture Collection.

Architecture, worn. — GUBÉ WEAR
